Embrace folding structure, strong and reliable, efficient folding and unfolding, easy to carry.

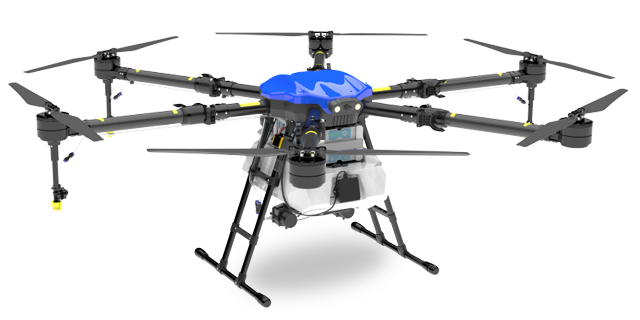

EV 6-Axis Agricultural Drones EV 4-Axis Agricultural DronesNew intelligent control system upgrade, 4-axis arm to protect safe flight, classic design, equipped with pressure spray.
Equipped with a 30/35 kg work box, the HV plant protection drone can spray up to 6-10 meters, which is highly efficient and easy to carry.
Join TZX's Authorized Dealer Network to Expedite The Transition Towards Agricultural Automation
Product manuals and corporate brochures help you understand us more comprehensively.
If you have any questions, please feel free to contact our technical experts and we will get back to you within 24 hours.

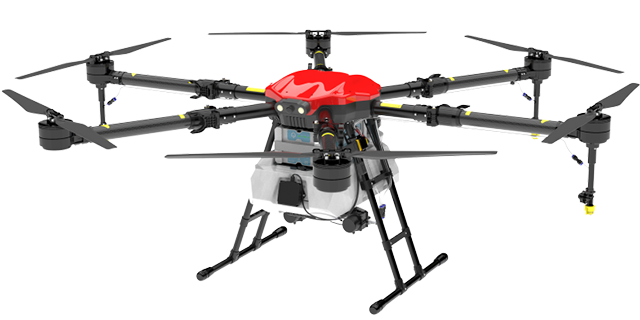

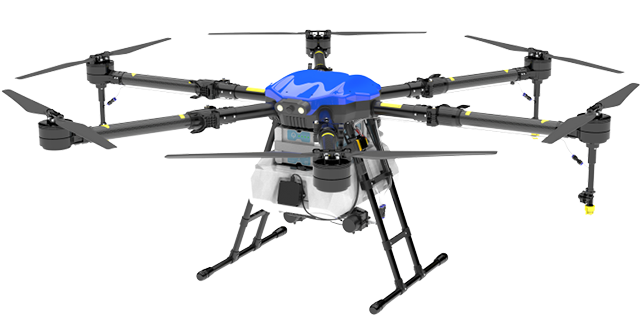

EV 6-Axis Agricultural Drones
Advanced 6-Axis Drones Agriculture & Farming Solutions, Payload Capacity 10KG/16KG/22KG, Safer Flight And Smoother Handling. Loaded Pressure Spraying.

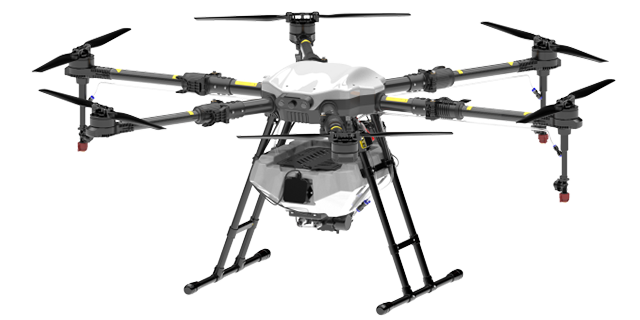

Plant Protection Agricultural Drones

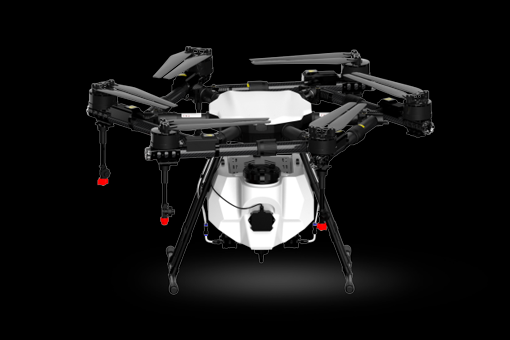

It can be folded and unfolded efficiently, easy to carry, and easier to transfer operations
Flying speed 6m/s, Effective spray width 5m, 26000-33000m²/h, medicine box 10L/16L/22L
Equipped with obstacle avoidance radar, high flight safety and improved operation efficiency
Large capacity battery, 16000-22000mah, full load flight time 7-10 minutes
The nozzle uses 4 pressure sprays to flexibly adjust the flow rate and atomization effect. The standard fan-shaped nozzle is precise and wear-resistant.
Fan nozzle, size adjustable
FPV Camera LED Lighting

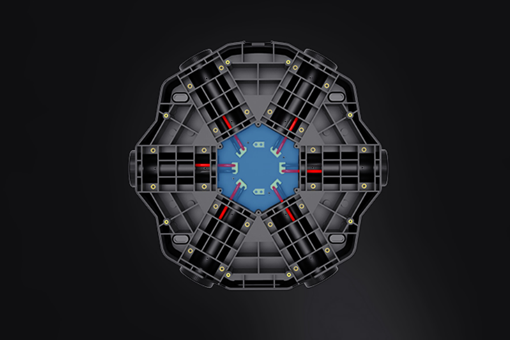

Flight Control System

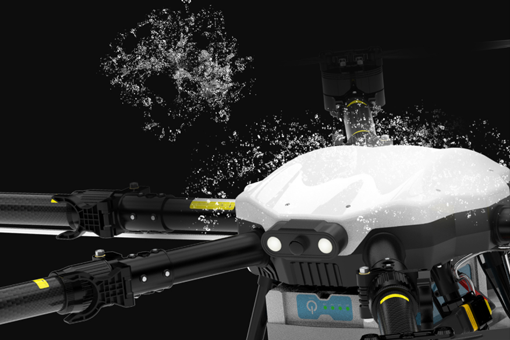

IP65 waterproof

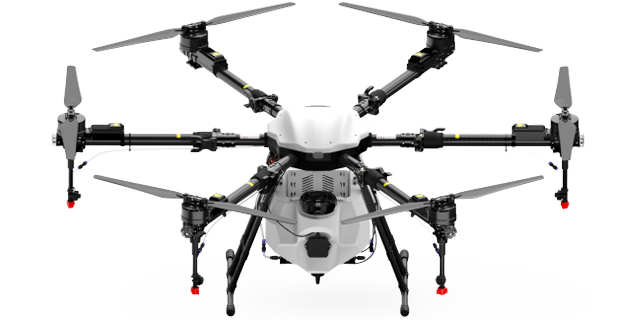

Embrace folding structure
High performance motor
Large flow water pump
TZX has many advantages, including efficient operation, precise application, all-round monitoring, strong adaptability, personnel safety protection and promotion of agricultural modernization. These advantages make agricultural drones one of the important trends in the development of modern agriculture in the future, bringing revolutionary changes to agricultural production.
New APP, easy to operate
H12+RTK version
Powerful link transmission
| UAV Model | EV610 Series | EV616 Series | EV622 Series |
| UAV Wheelbase | 1400mm | 1600mm | 1800mm |
| Expanded Size | 1320*1500*600mm | 1470*1700*600mm | 1920*1080*600mm |
| Folded Size | 860*985*600mm | 980*1080*600mm | 1160*1080*600mm |
| Medicine Box Load | 10L | 16L | 22L |
| Machine Weight | 13.5kg | 15.5kg | 17kg |
| Maximum Weight | 28kg | 38kg | 46kg |
| Spraying Flow | 3L/min | 5L/min | 5L/min |
| Effective Spray Width | 5m | 5m | 5m |
| Flight Speed | 6m/s | 6m/s | 6m/s |
| Empty Flight | 20min | 20min | 20min |
| Fully Loaded Flight | 10min | 10min | 10min |
| Operating Voltage | 44.4v | 58.8v | 58.8v |
| Battery Capacity | 16000mah | 22000mah | 20000mah |
| Working Efficiency | 20000m²/h | 27000m²/h | 34000m²/h |
If you have any suggestions or questions, Please free to contact us.
Precision Planting, Efficient Plant Protection, Ultra-long Endurance, TZX Agricultural UAV&Drones For Cost Reduction & Efficiency Enhancement.
